Luxury Wandsworth Bathroom Showroom
Wandsworth Bathroom Design Specialists Serving South West London
Designing a bathroom in Wandsworth requires a structured approach that balances spatial planning, plumbing coordination, ventilation compliance and long-term material durability.
At Simple Interiors, we provide professional bathroom design services from our permanent showrooms in Wandsworth and Fulham, working with homeowners across SW18, SW6, Battersea, Clapham, Putney, Balham, Richmond and surrounding areas.
Bathroom design differs significantly from kitchen planning. The room footprint is typically smaller, moisture levels are higher and regulatory considerations are more tightly defined. Effective bathroom design requires early technical awareness alongside considered aesthetic decisions.
What Is Bathroom Design?
Bathroom design is the structured planning of sanitaryware layout, plumbing routes, ventilation systems, storage integration, lighting placement and material selection before installation begins.
Great bathroom design involves assessment of:
- Room proportions and ceiling height
- Soil stack and waste pipe positioning
- Water pressure and flow rate
- Drainage gradients
- Electrical zoning regulations
- Ventilation requirements
- Moisture-resistant finishes
- Safe movement clearances
Relying on bathroom design experts for a properly planned space reduces installation risk, prevents costly rework and improves usability over time.
Designing Bathrooms for Wandsworth Properties
Wandsworth and surrounding South West London areas contain a wide range of property types, each presenting different planning constraints.
Victorian and Edwardian Terraces
These homes frequently include:
- Narrow bathroom widths
- Chimney breasts
- Solid brick construction
- Original floor structures
- Older plumbing infrastructure
Bathroom layouts in these properties must often work around fixed structural features. Repositioning soil pipes or relocating drainage stacks may not always be practical or cost-effective.
Wall-hung sanitaryware can improve visual space. Recessed storage niches can maximise usable wall depth. Careful selection of shower screens and enclosure types can prevent overcrowding.
Mansion Flats and Period Conversions
Bathrooms in flats often require:
- Efficient plumbing routing
- Acoustic consideration
- Limited floor depth
- Coordination with building management restrictions
Waste positioning may be influenced by existing stack locations. Pumped systems may be required in certain layouts.
Early planning avoids design concepts that later prove technically impractical.
Modern Extensions and Renovations
In extended properties, bathrooms may be:
- Repositioned within new layouts
- Installed within loft conversions
- Created as additional en-suites
Here, structural elements such as new steel supports or sloped ceilings must be considered during layout development.
Our Structured Bathroom Design Process
A clear design framework improves outcomes.
1. Initial Design Consultation
We begin by reviewing:
- How the bathroom will be used
- Bath versus shower preferences
- Storage requirements
- Aesthetic direction
- Budget framework
For projects involving multiple bathrooms, we assess each space independently while maintaining consistency across the property.
2. Site Survey and Technical Assessment
Accurate measurement is essential.
We assess:
- Existing soil pipe locations
- Waste pipe gradients
- Water pressure
- Ventilation routes
- Ceiling heights
- Structural walls
- Floor levels

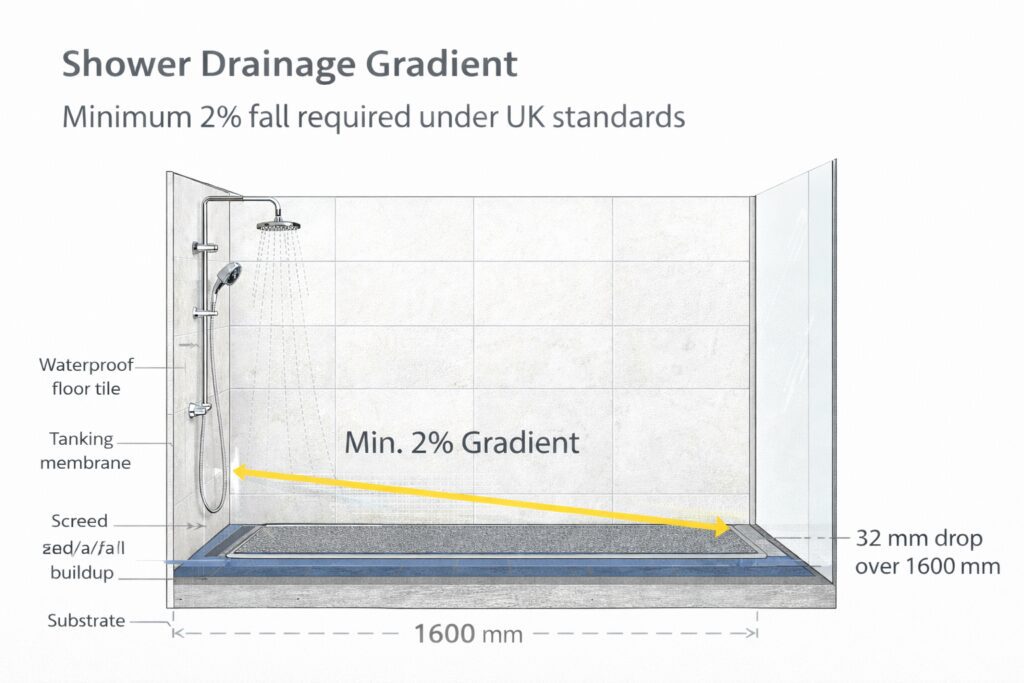

Drainage gradient is particularly important in walk-in shower designs. Insufficient fall can compromise long-term performance.
Bathroom layouts are developed with awareness of UK building regulations, including electrical zoning and ventilation standards.

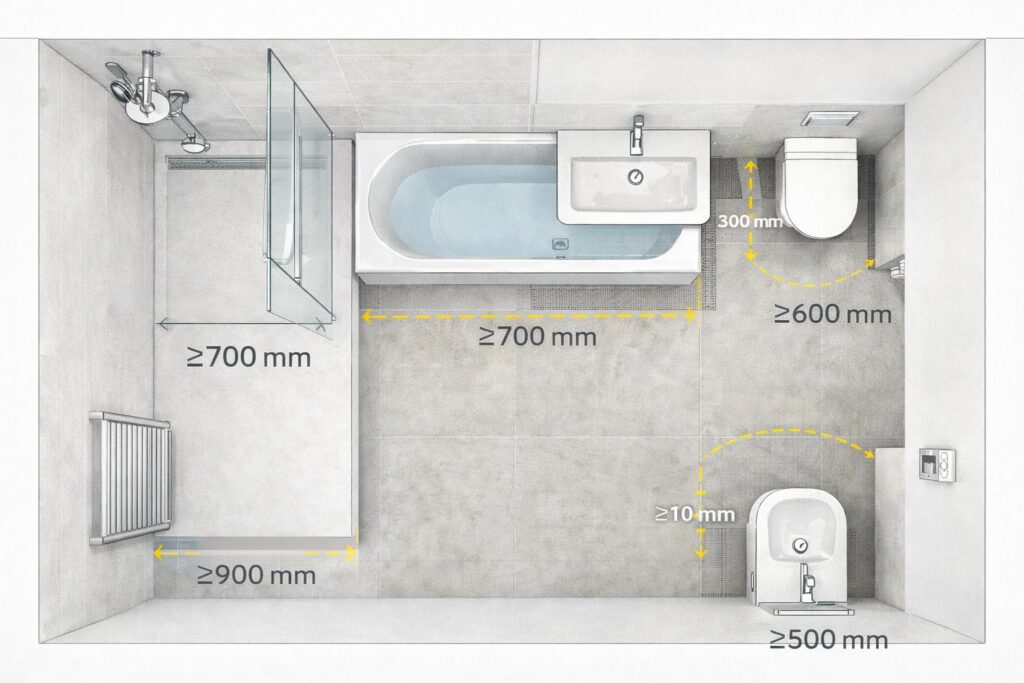

Bathroom Layout Planning and Clearances
Bathroom design must balance comfort with compact dimensions.
We consider:
- Minimum 600mm clearance in front of WCs
- Practical basin projection
- Shower enclosure access space
- Door swing arcs
- Towel radiator placement
- Storage reach zones
Poorly planned clearances are a common source of post-installation frustration. Even minor adjustments in sanitaryware positioning can significantly improve usability.
Plumbing and Drainage Considerations
Technical coordination begins early in the design stage.
We account for:
- Soil stack proximity
- Horizontal waste run length
- Required gradient for gravity drainage
- Vent pipe routing
- Access for maintenance
- Where bathrooms are repositioned, additional structural or service coordination may be required.
Design must align with practical plumbing feasibility.
Bathroom Ventilation and Moisture Management
Bathrooms generate high humidity and as Wandsworth bathroom design experts, we take this into account.
Effective design includes:
- Mechanical extraction positioning
- External vent routing
- Condensation control
- Adequate airflow pathways
- Waterproofing systems
Ventilation planning is particularly important in internal bathrooms without windows. Failure to manage moisture can result in long-term material deterioration.
Electrical Zoning and Compliance
For your home in Wandsworth bathroom design must consider electrical safety zones.
We plan layouts with awareness of:
- Zone 0, 1 and 2 restrictions
- IP-rated lighting requirements
- Safe placement of shaver sockets
- Underfloor heating integration
- Extractor fan compliance
Early compliance awareness prevents the need to revise layouts once installation begins.
Shower and Bath Planning
Selecting between bath, shower or combined arrangements affects the entire layout.
Walk-in showers require:
- Adequate drainage fall
- Splash control
- Minimum enclosure dimensions
- Consideration of glass panel positioning
- Freestanding baths require:
- Structural floor assessment
- Floor waste routing
- Clearance for cleaning and maintenance
Integrated bath-shower combinations require careful sealing and splashback planning.
Storage Integration in Bathroom Design
Storage often determines long-term usability.
We plan for:
- Vanity drawer depth
- Concealed cistern housings
- Recessed shower niches
- Mirror cabinets
- Tall storage units
Wall-hung units can improve perceived space in smaller bathrooms.
Material Selection for Durability
Bathrooms demand materials suited to humid conditions.
We evaluate:
- Porcelain tile suitability
- Slip resistance
- Moisture-resistant cabinetry
- Worktop resilience
- Sealant longevity
- Grout specification
Material selection must balance aesthetic preference with practical performance.
Lighting Strategy in Bathroom Design
Lighting supports both function and atmosphere.
We consider:
- Task lighting at mirrors
- Ambient ceiling lighting
- Shower lighting compliance
- Integrated LED detailing
Layered lighting prevents shadowing and improves usability.
En-Suite and Compact Bathroom Planning
Many Wandsworth homes incorporate en-suites within loft conversions.
These spaces often require:
- Careful positioning under sloped ceilings
- Compact sanitaryware selection
- Efficient ventilation routing
- Minimal footprint shower trays
Precision measurement is critical in these environments.
Coordinating Multiple Bathrooms Within a Property
Where renovations include:
- Main bathroom
- En-suite
- Cloakroom
We maintain:
- Consistent finish direction
- Coordinated brassware tones
- Complementary tiling palettes
- Unified lighting style
This approach avoids visual fragmentation across the property.
Showroom-Based Material Review
Bathroom materials are best assessed in person.
Our bathroom showroom in Wandsworth allows you to:
- Compare vanity finishes
- Review tile textures
- Assess brassware tones
- Evaluate scale and proportion
Physical review reduces uncertainty before final specification.
Free Bathroom Design Consultation
We offer a free bathroom design consultation for homeowners across Wandsworth and South West London.
This includes:
- Layout discussion
- Technical feasibility review
- Finish guidance
- Budget framework clarification
Appointments can be arranged at our Wandsworth or Fulham showroom.
Serving South West London
Although this page focuses on Wandsworth bathroom design, we work across:
- Fulham
- Battersea
- Clapham
- Balham
- Putney
- Richmond
- Wimbledon
- Parsons Green
- Hammersmith
Our two-showroom presence supports projects throughout SW and West London.
Book Your Bathroom Design Consultation
If you are planning a new bathroom in Wandsworth or across South West London, arranging a structured design consultation is the first step towards a practical and well-coordinated result.
Book a free appointment at our Wandsworth or Fulham showroom to begin planning your project.
Frequently Asked Questions – Wandsworth Bathroom Design
Do you only design bathrooms in Wandsworth?
No. We provide bathroom design services across South West London.
Do you consider building regulations?
Yes. Bathroom layouts are developed with awareness of ventilation standards and electrical zoning regulations.
Can you design small bathrooms?
Yes. Many projects involve compact spaces where careful planning improves usability.
Do you supply and install bathrooms?
Yes. We provide fully fitted bathrooms and coordinate installation following design approval.
Is the design consultation free?
Yes. We offer a free initial consultation to review layout and material options.
